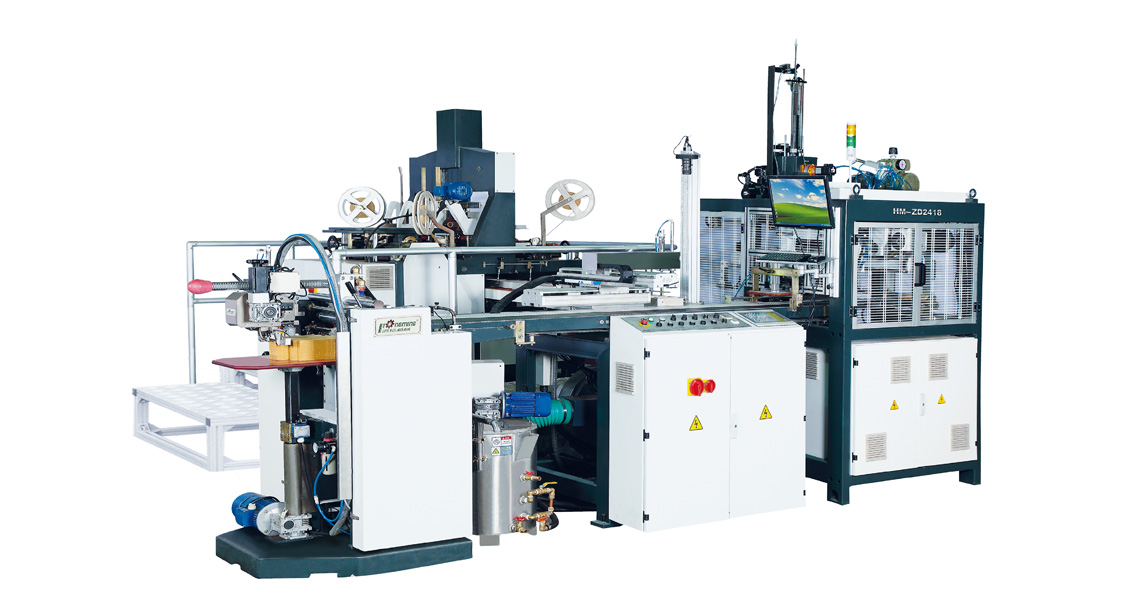

HM-ZD2418 AUTOMATIC RIGID BOX MAKING MACHINE
Suit to all kinds of rigid boxes in mass production
Computer control with error auto stop and display (optional)
Adopt servo and PLC
Automatically change mould (optional)
Automatically feed paper and greyboard.
24-hours control for glue pre-heating
Input 300 product formula, and add 2G memory SD card (optional)
Automatically cut and heat tape to paste the greyboard box's quad stayer(four corners), with independent man-machine control
Spotter by camera tracing system and Robot Arm (spotting inaccuracy ±0.5mm)
Wrapper can automatically and continually lift box, wrap paper, fold corner edge, fold in and form box.
Automatic control system for glue viscosity (optional)

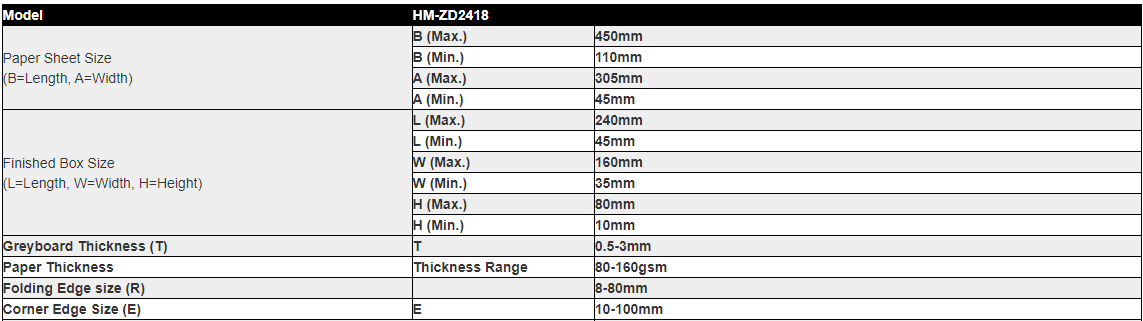

| Product | |
| Air supply | 480L/min, 0.8Mpa |
| Glue Tank Volume | 20L |
| Greyboard Pile Height (Max.) | 400mm |
| Machine Dimension | 4500mmx4000mmx3000mm |
| Net Weight | 4000kg |
| Paper Pile Height (Max.) | 300mm |
| Power | 23kW |
| Speed | ≤30pcs/min |
| Voltage | AC380V |
