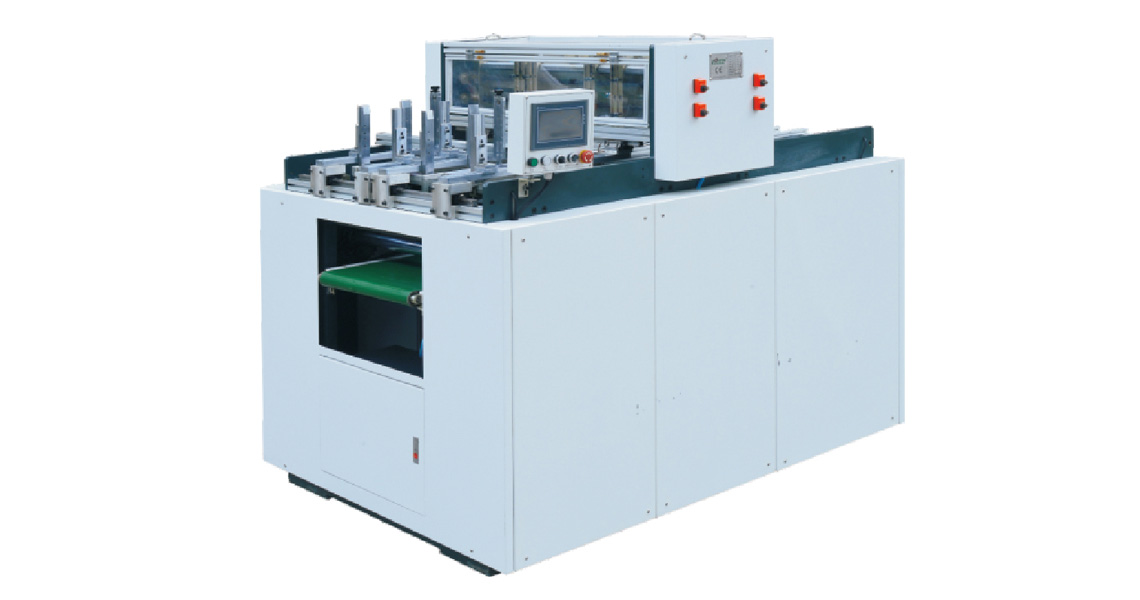

HM-ZDPX1000 AUTOMATIC GROOVING MACHINE
Our Automatic Grooving Machine is used for notching greyboard on a plate. The machine does not cause any cosmetic wrinkles or unwanted bending during box production. We guarantee a high quality end production when using our equipment.
The entire Production process is PLC controlled for easy operation.
The feeding plate is controlled by linear guide and servo motor.
All the knives are made of wear resistant tungsten steel for highly accurate cuts.
It can notch various paper materials, including Greyboard, paperboard, density boards, etc.
*This machine requires an air compressor of ≥0.75kW.
| Product | |
| Greyboard Length | 50-600mm |
| Greyboard Thickness | 0-950mm |
| Greyboard Width | 50-1000mm |
| Machine Dimension | 1900x1400x1660mm |
| Net Weight | 2000kg |
| No. Of Notch | 8 |
| Notch Angle | 0-950mm |
| Notch Distance | 0-950mm |
| Power | 5.5kW |
| Speed | 15-20pcs/min |
| Voltage | AC380V |
