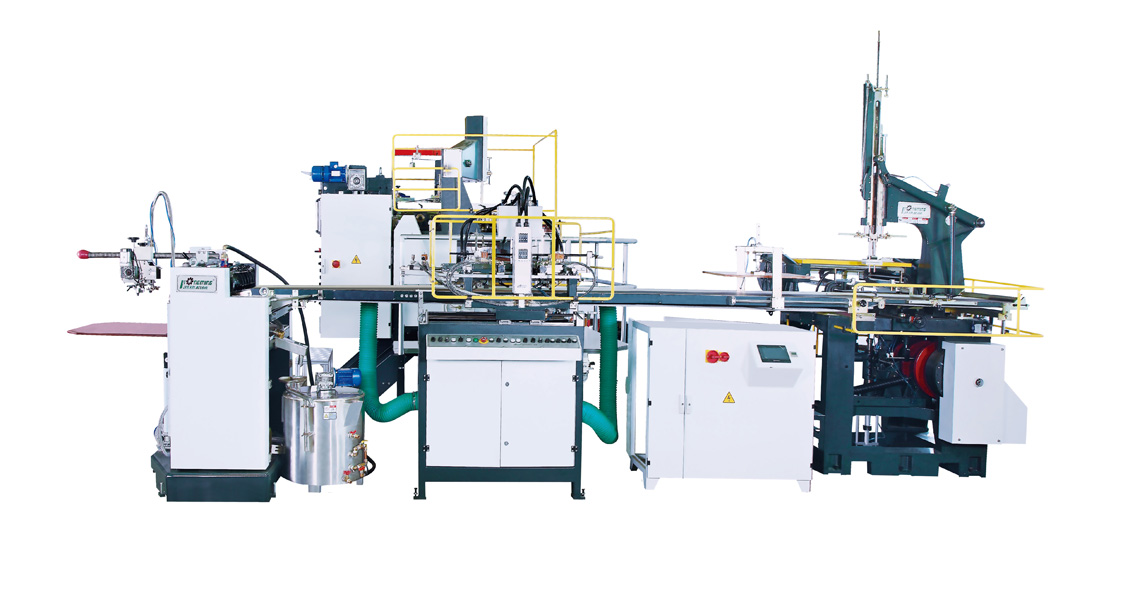

HM-ZD600 AUTOMATIC RIGID BOX MAKING MACHINE
Suit to all kinds of rigid boxes in mass production
Employ Japanese Panasonic PLC and man-machine control to automatically form boxes in one process.
Computer control with error auto stop and display (optional)
Automatically feed paper and greyboard.

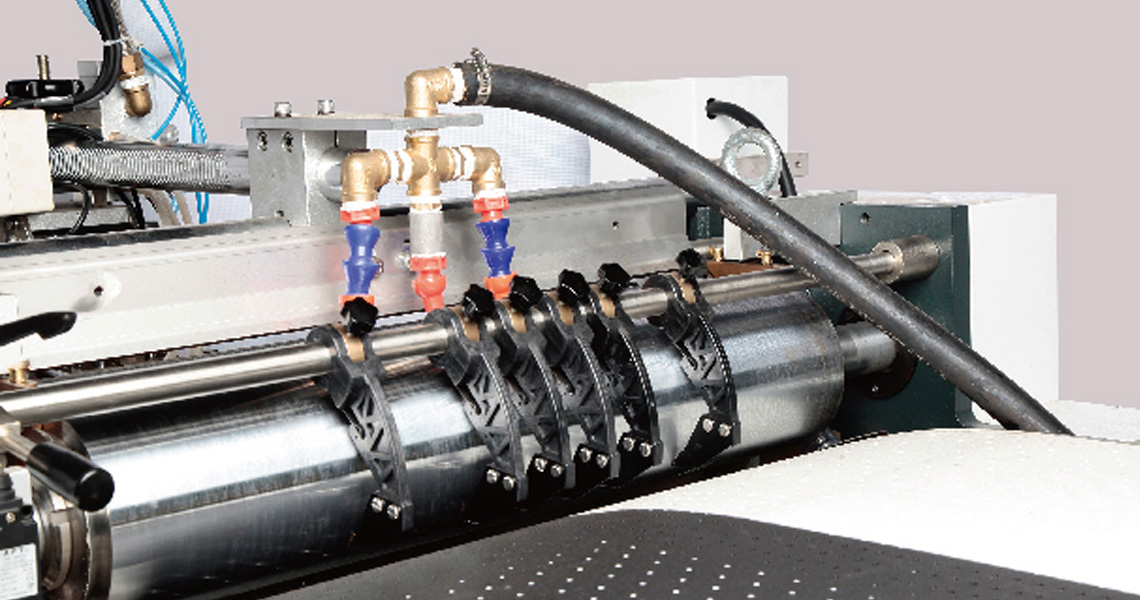

24-hours control for glue pre-heating
Automatically cut and heat tape to paste the greyboard box's quad stayer(four corners), with independent man-machine control
Spotter by electric eye tracing system and Hydraulic pneumatic rectifying system to spot correctly (spotting inaccuracy ±0.5mm)
Wrapper can automatically and continually lift box, wrap paper, fold corner edge, fold in and form box.
Remodel for irregular boxes and plastic boxes (optional)
Automatic control system for glue viscosity (optional)
| Product | |
| Air supply | 350L/min, 0.8Mpa |
| Glue Tank Volume | 40L |
| Greyboard Pile Height (Max.) | 850mm |
| Heating Power | 4kW |
| Machine Dimension | 6800mmx4500mmx3300mm |
| Net Weight | 5800kg |
| Paper Pile Height (Max.) | 300mm |
| Power | 13kW |
| Speed | ≤30pcs/min |
| Voltage | AC380V |
