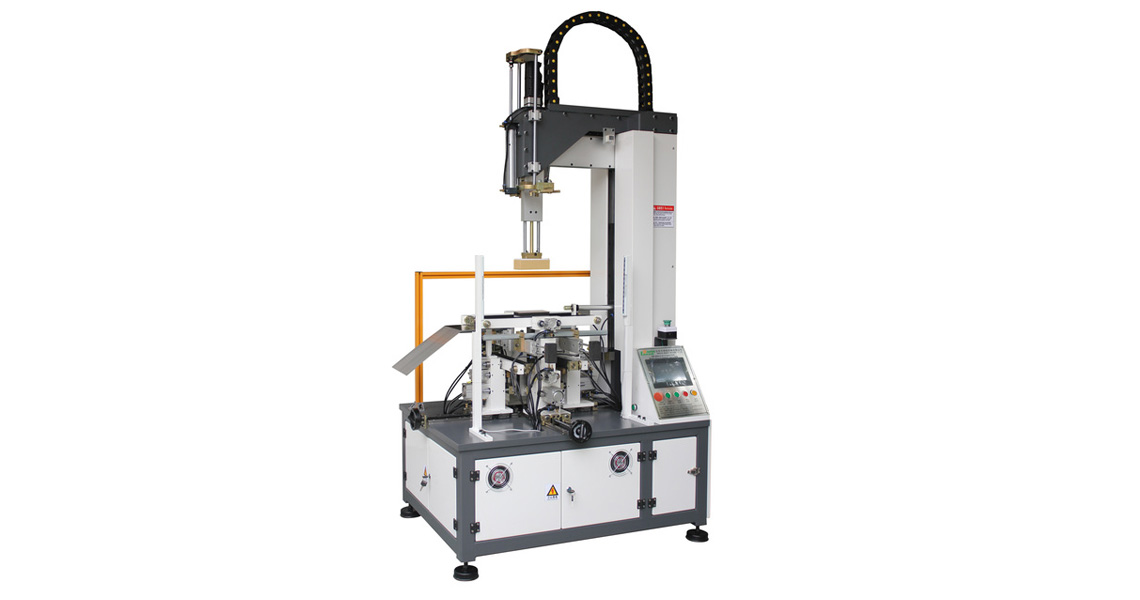

HM-500A BOX FORMING MACHINE
This rigid box forming machine is designed for wrapping and folding the paper edges in the production process for rigid boxes and other cardboard box products.
Servo motor applies in the upper mould and in the main shaft of the machine.
PLC controlled.
The electric parts apply international brand. Low malfunction and high accuracy.
With alarm functions display on screen.
With emergency stop switch.
| Product | |
| Folding-in Depth | 10-60mm |
| Machine Dimension | 900x800x2960mm |
| Max. size of box | 500x400x120mm |
| Min. size of box | 80x60x10mm |
| Net Weight | 900kg |
| Paper Corner Edge | 10-90mm |
| Power | 2.2kw |
| Speed | 15-20pcs/min |
| Voltage | AC220v |
